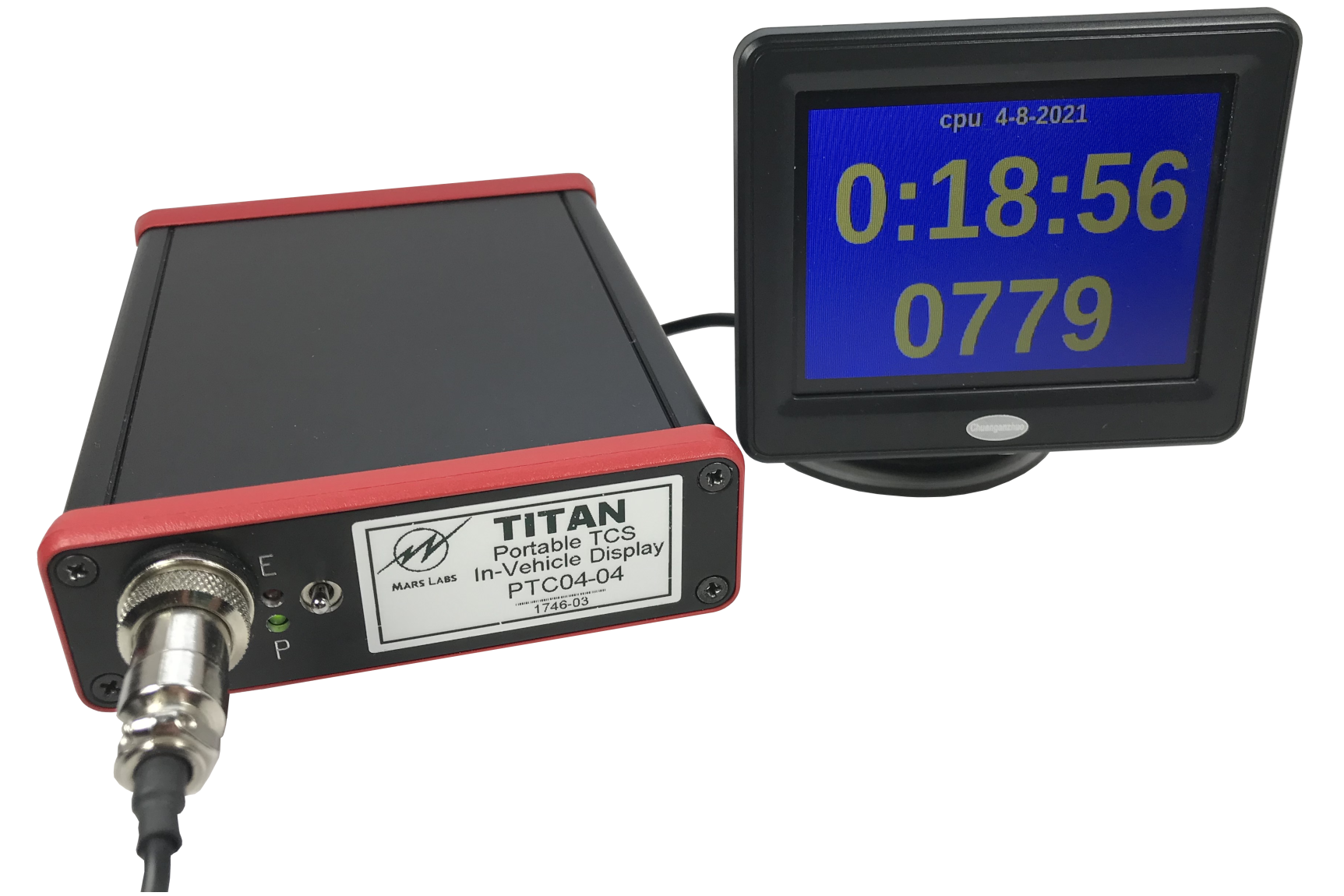

Titan In-Vehicle Display

Compact Recording Monitor

Front View


  • System displays essential TCS test information to the drive
  • Convenient ‘plug and go’ functionality
  • Compact monitor size permits mounting in any convenient posistion
  • Wide angle LCD screen viewable in bright sunlight

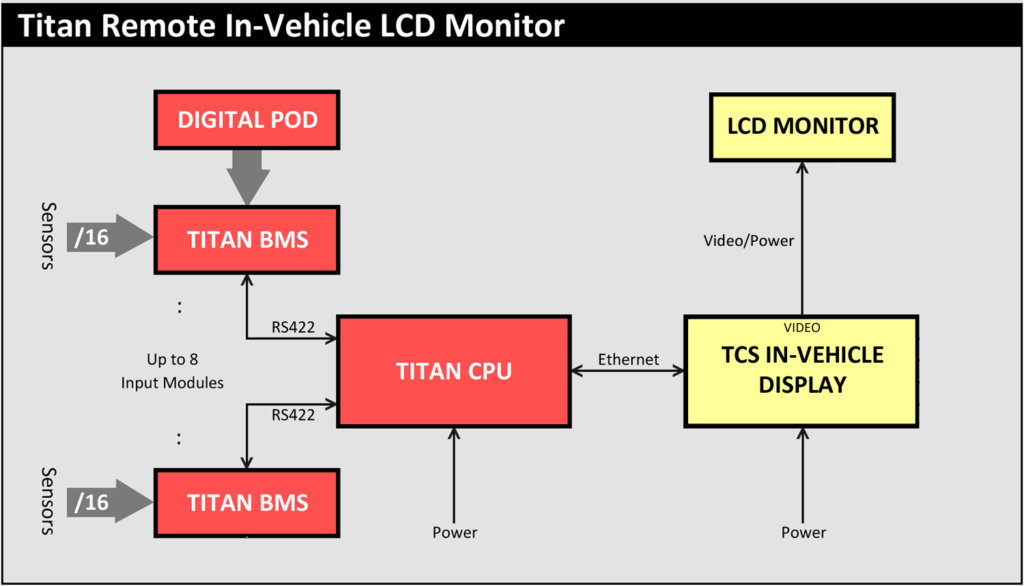

  • Supports all TCS test configurations via Ethernext connection to Titan CPU
  • Compact size and vert low weight

LCD Screen Full color TFT LCS backlight display
(7.2 cm x 5.4cm viewable)
Power Requirements 14 – 32 VDC
Dimensions Controller: 12 cm x 10.3 cm x 3.4 cm (L x W x H)
LCD Monitor: 8.9 cm x 7.6 cm x 3.4 cm (without base)
