Overview
Mars Labs offers custom cables and adapters for your existing sensors. See below for a list of our standard cables and adapters. If you don’t find what you’re looking for contact us and we’ll work with you to find a solution.
| Part Number | Descriptions |
|---|---|

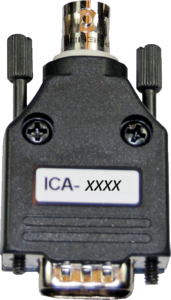

| ICA-VOLT1 | BNC to DB9 Voltage Input (1,7,8) Ground |
| ICA-VOLT2 | BNC to DB9 Voltage Input (7,8) No Ground |
| ICA-TICP | BNC to DB9 ICP |
| ICA-TICP6 | BNC to DB9 ICP Pigtail |
| ICA-DB9 | DB-25, DB37 |
| ICA-TIDP4 | Internal Digital Pod Breakout Cable |
| Part Number | Descriptions |
|---|---|

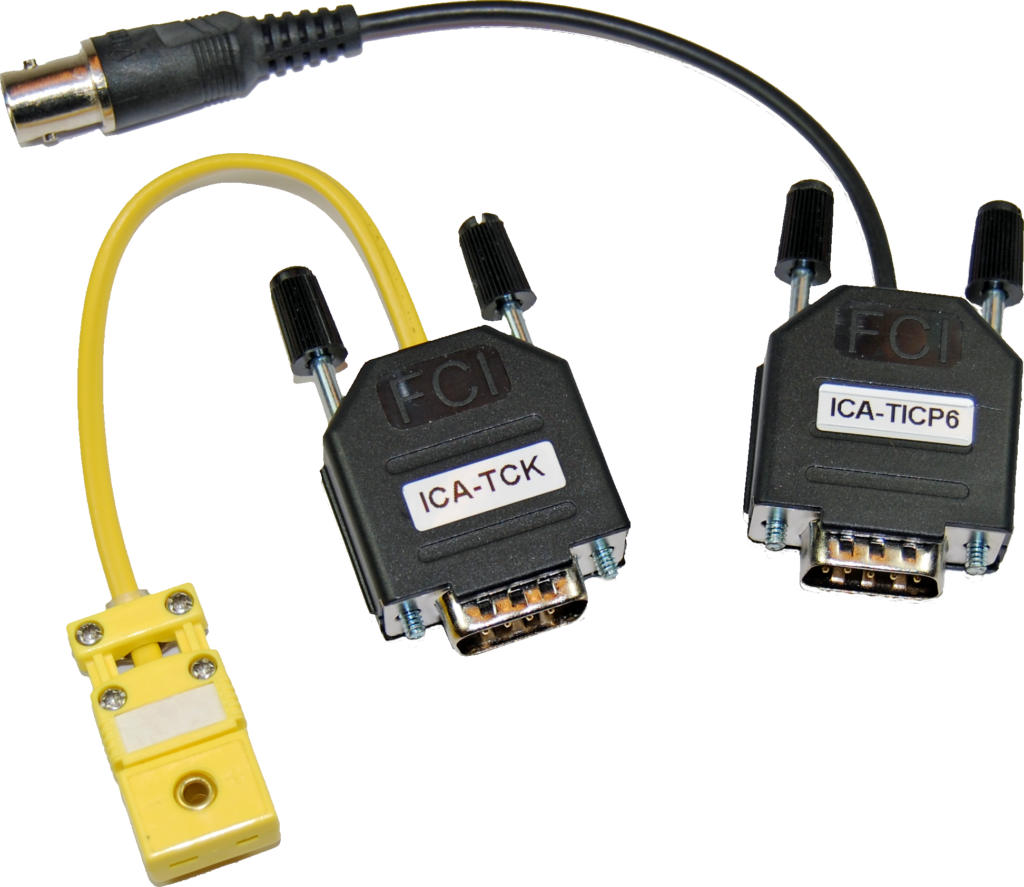

| ICA-VOLTP | BNC Pigtail to DB9 (pins 1,7,8), Single Ended Voltage Input |
| ICA-VLT2P | BNC Pigtail to DB9 (pins 7 & 8), Differential Voltage Input |
| ICA-TICP6 | BNC to DB9 ICP Pigtail |
| ICA-TCx | Thermocouple (types T, K, and J) to DB9 Pigtail |
| Part Number | Descriptions |
|---|---|
| ICA-TIDP4 | DB25 to DB9 (x4) Internal Digital Pod Breakout Cable |

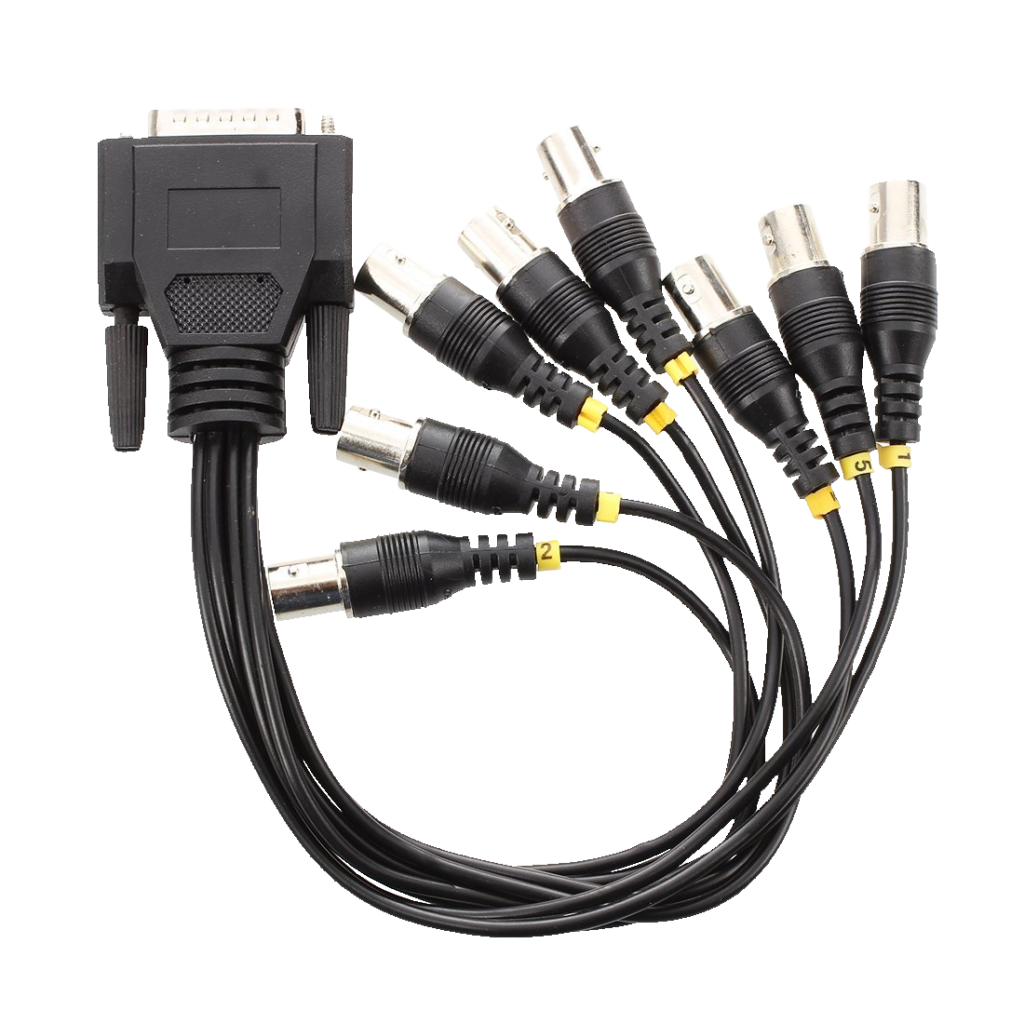

| ICA-CAI8 | 8 BNC to DB9 Input Cable for CAI04 DAQs |
| Part Number | Descriptions |
|---|---|
| ICA-DB9 | DB9 Connector with Back Shell |
| ICA-DB25 | DB25 Connector with Back Shell |
| ICA-DB37 | DB37 Connector with Back Shell |
| Part Number | Descriptions |
|---|---|

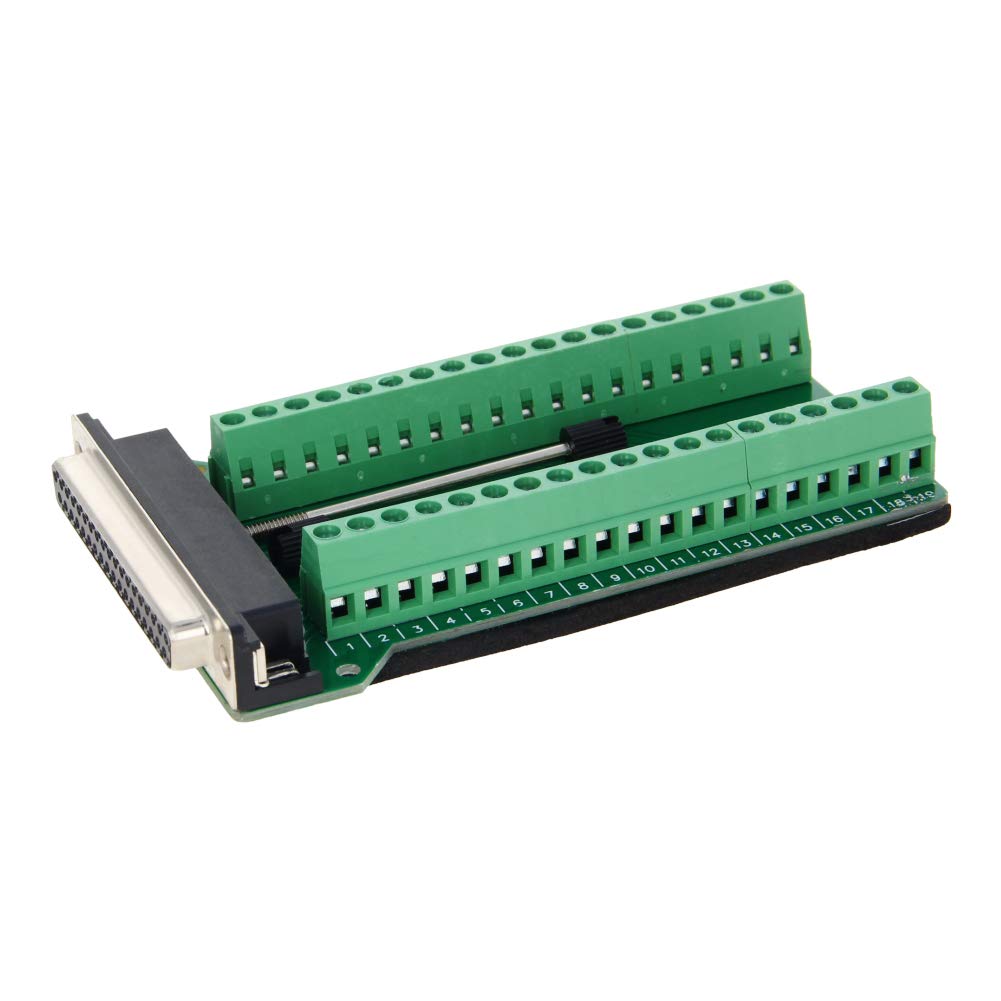

| DB37-M2 | DB37 Female to Screw Terminals |
| DB37-G2 | DB37 Male to Screw Terminals |
| Part Number | Descriptions |
|---|---|

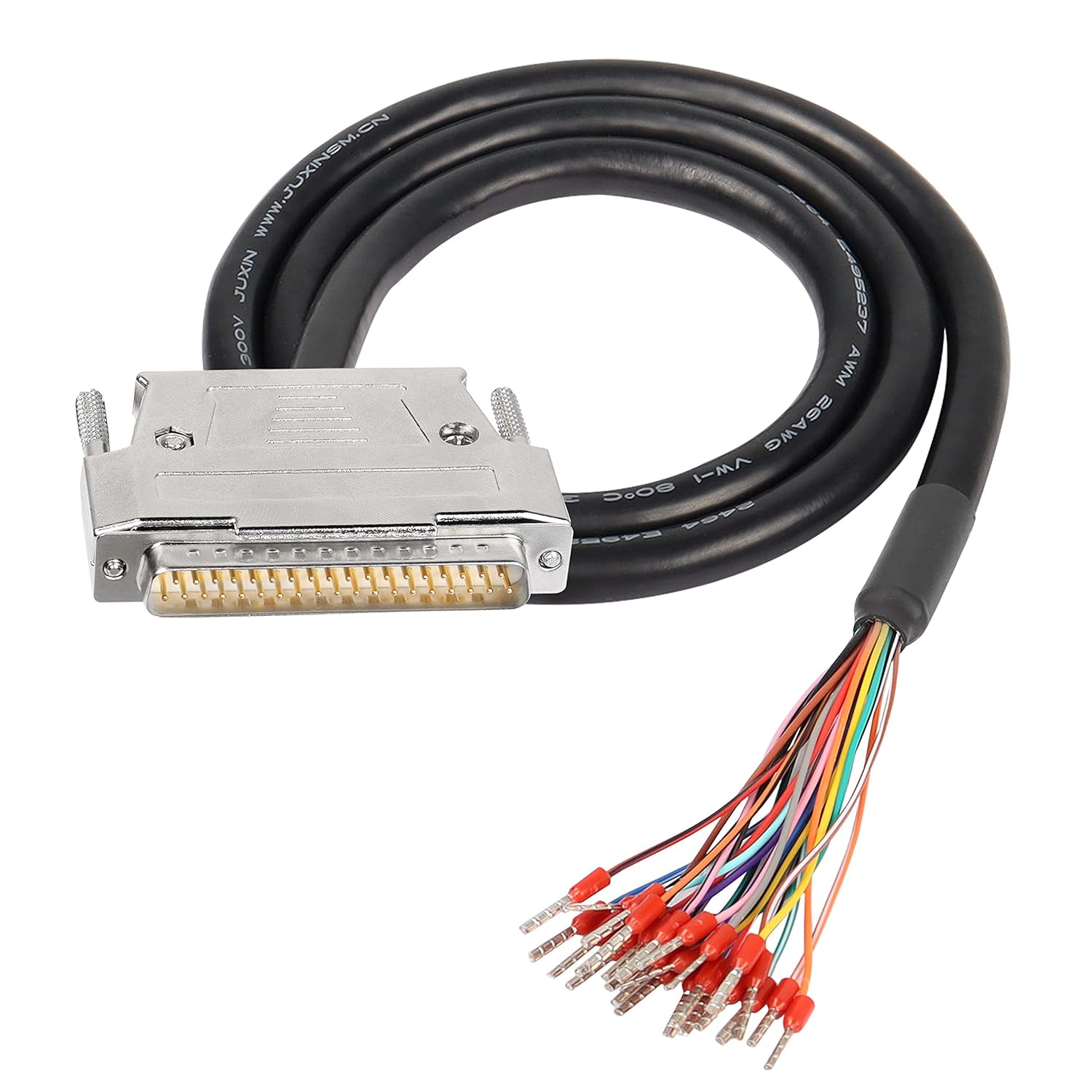

| DB37-TWIRE | DB37 Male to Terminated Bare Wires Breakout cable for ADF16/CDF16 Mini-Recorders |
| Part Number | Descriptions |
|---|---|

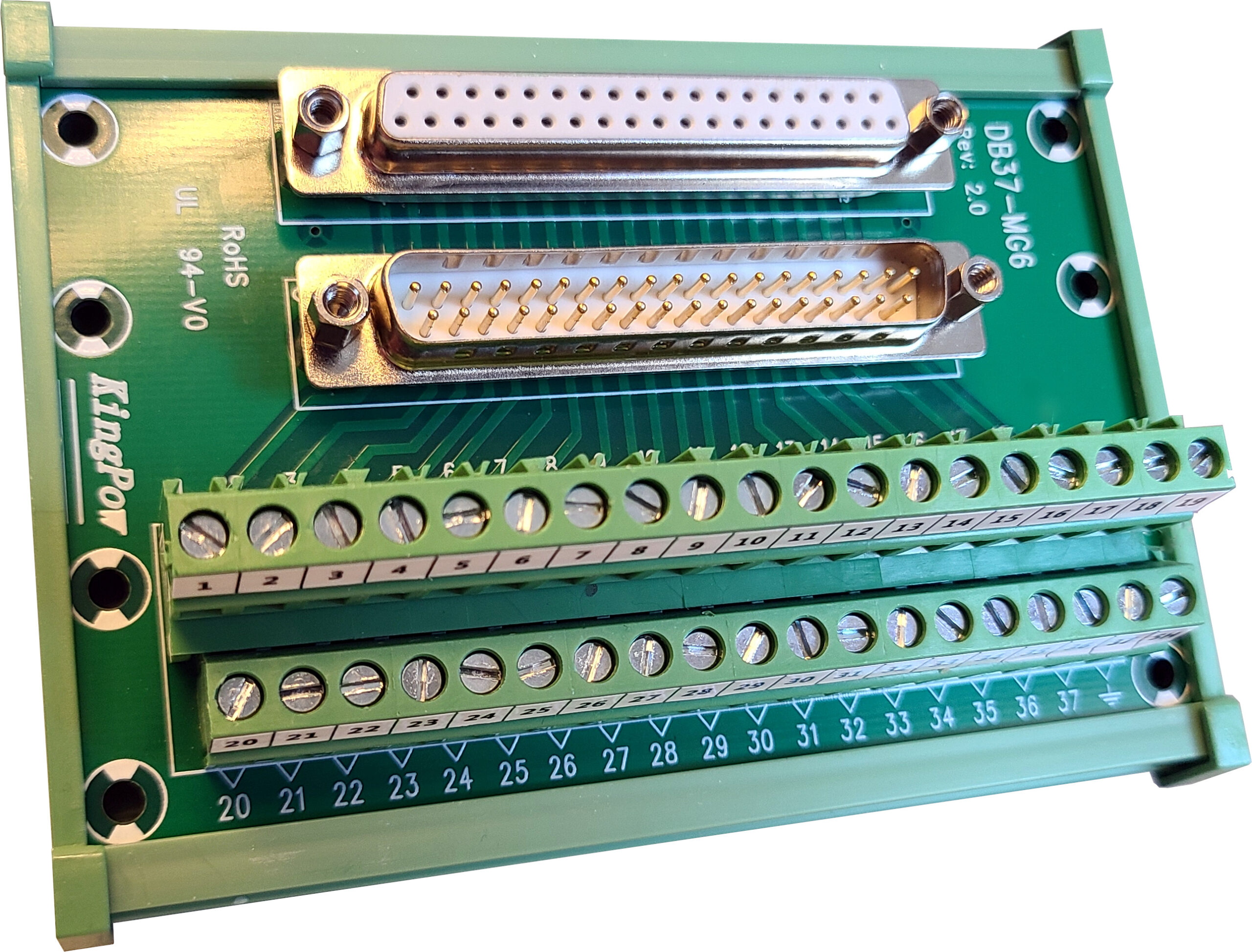

| DB37-MG6 | DB37 Male and Female to Screw Terminal DIN Rail Rack Mount |
| Part Number | Descriptions |
|---|---|

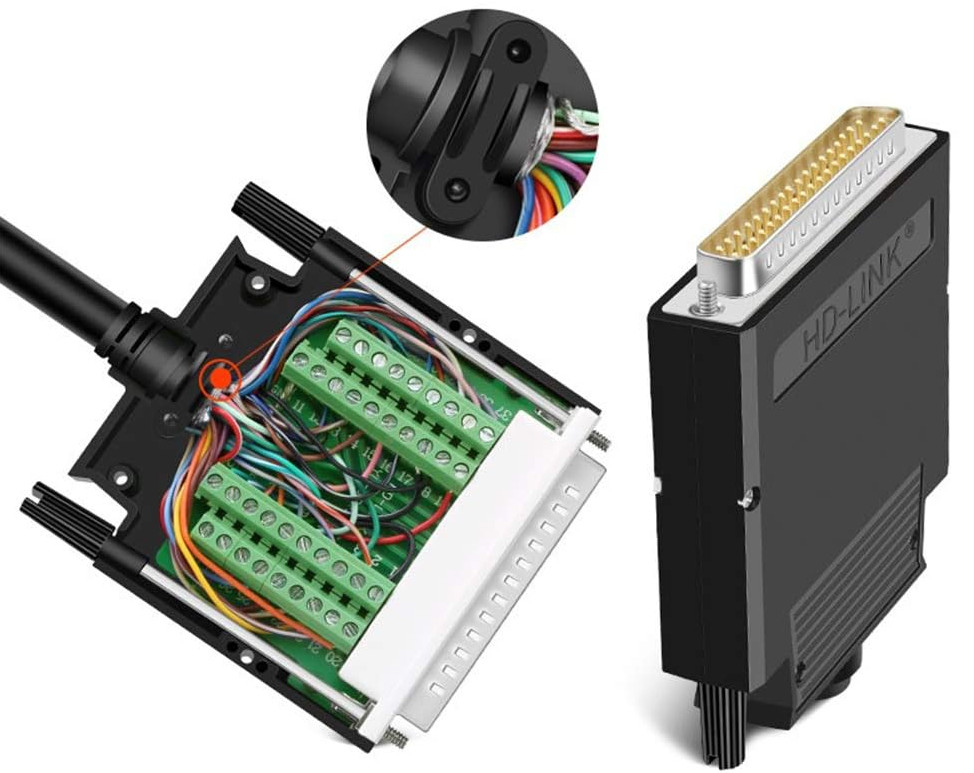

| YL-SCD-37M | DB37 Male to Screw Terminal w/Backshell *cable not included |
| Part Number | Descriptions |
|---|---|

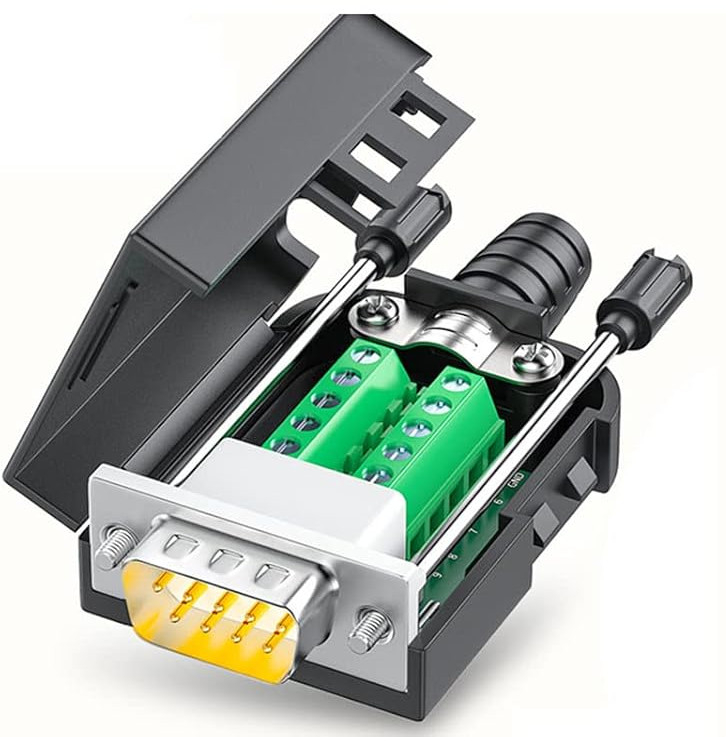

| YL-SMG-9DM | DB9 Male to Screw Terminal w/Backshell |
