Titan Mini-CPU

Ethernet Gateway

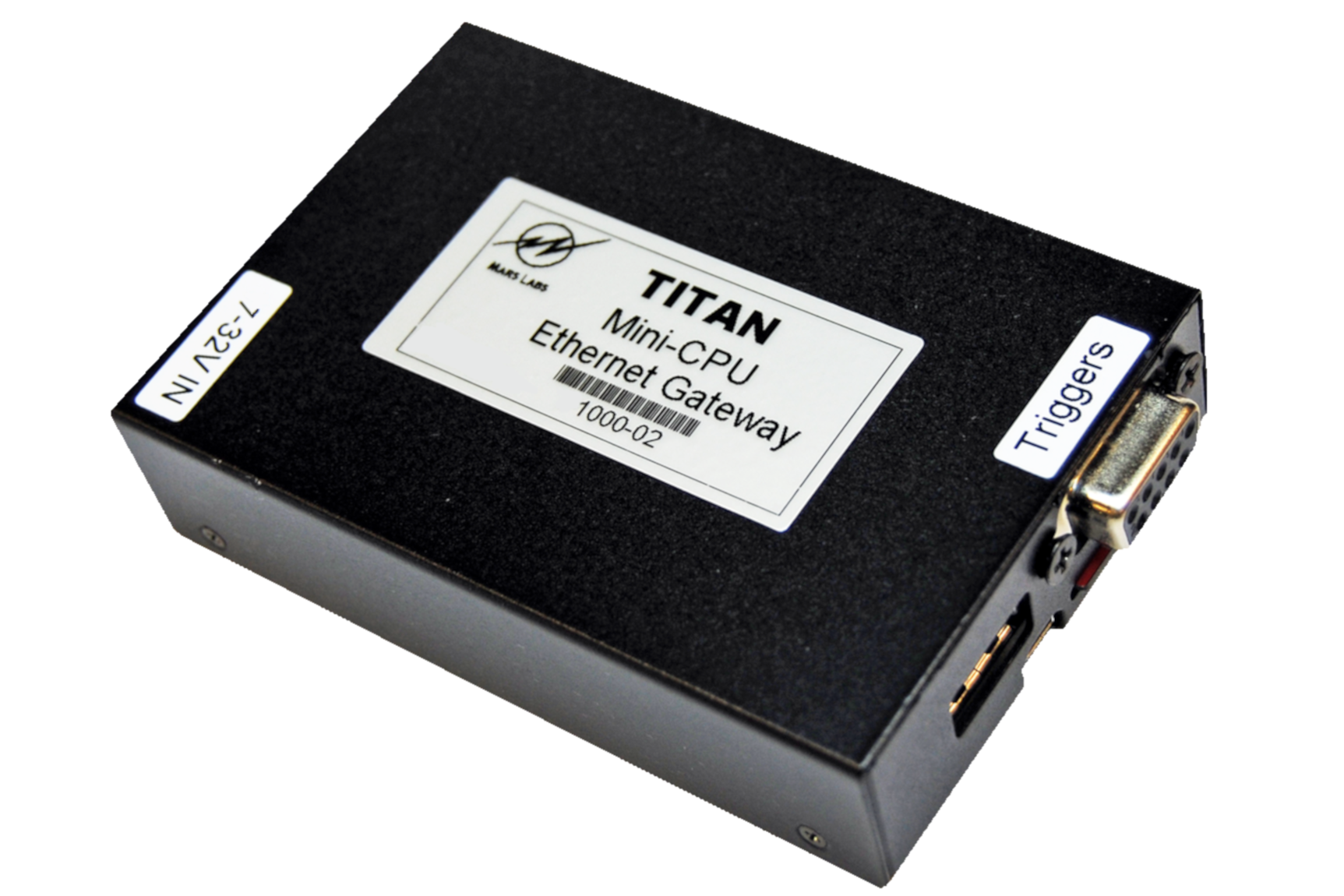

Front View


  • System displays essential TCS test information to the drive
  • Convenient ‘plug and go’ functionality
  • Compact monitor size permits mounting in any convenient posistion
  • Wide angle LCD screen viewable in bright sunlight

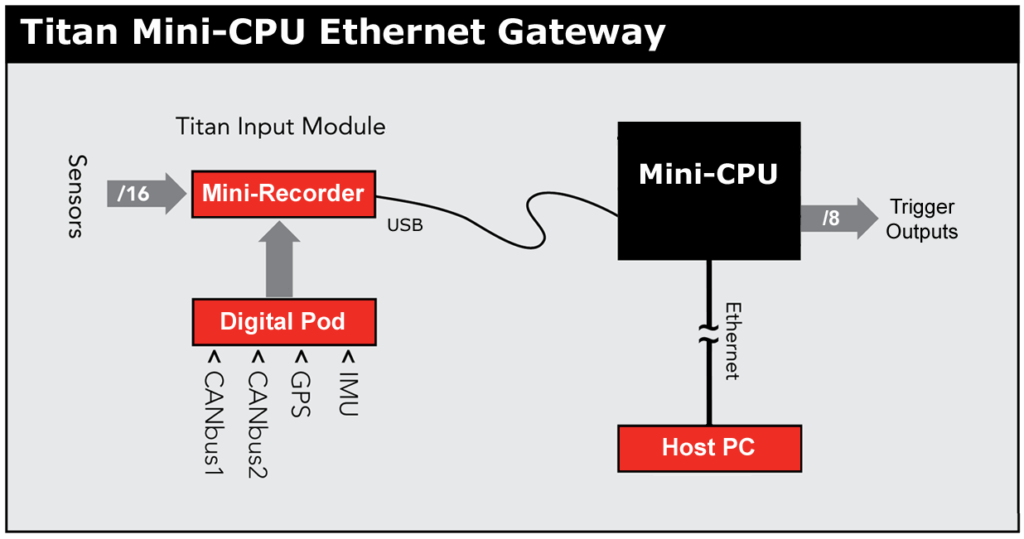

  • Supports all TCS test configurations via Ethernext connection to Titan CPU
  • Compact size and vert low weight

Number of channels Up to 16 analog channels, plus digital channels
Sample RateSupports all Titan Input Module rates (10Hz to 10KHz)
Recording MediaBuilt-in 1.4GB eMMC memory. Supports micro SD (Secure Digital) memory – any size
PC OperationVia network or Ethernet crossover cable
Trigger Outs8 programmable trigger outputs (programmed via TCS)
Remote Start/Stop SwitchOptional Remote Start/Stop switch with indicator
Power Requirements7-32 VDC
Dimensions / Weight9.8 cm x 6.2 cm x 2.1 cm (L x W x H) / Weight 149 g

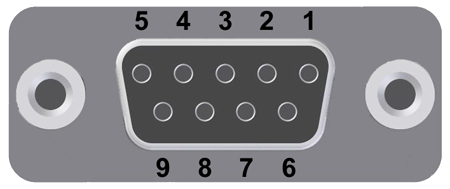

GPIO Pinouts:

2Bit A
3Bit B
4Bit C
5Bit D
6Bit E
7Bit F
8Bit G
9Bit H
