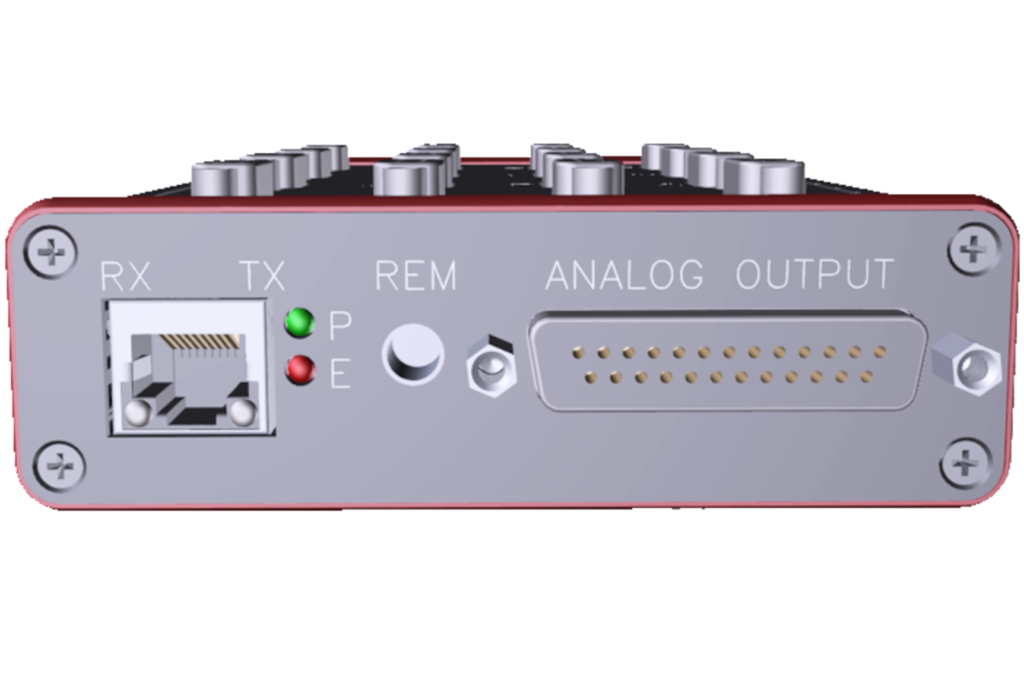

Digital to Analog Add-On
16 Analog Outputs
Key Features:
- Adds analog output capability to Titan Mini-Recorders for monitoring and control applications
- Full 16 channel operation with isolated outputs
- Input signals may be recorded when connected to a PC or Titan CPU, as well as monitored in real-time on the PC
- Output is automatically offset to include the balance value used for the sensor
- Output Sample Rate: 1200 samples per second
- Output Bandwidth: 150 Hz
- Output Voltage Range: ±10V
Specifications:
| Channels | 16 Analog Outputs |
| Output Connector | DB25 Female |
| Output Sample | 1200 samples/second |
| Output Bandwidth | 150 Hz |
| Sensor Balance Values | Output is automatically offset to include the balance value used for the sensor |
| Output Voltage Option | 0 to +5V, or ±10V |
| Output Filter Option | 150 Hz, 3 Pole reconstruction fi lter |
