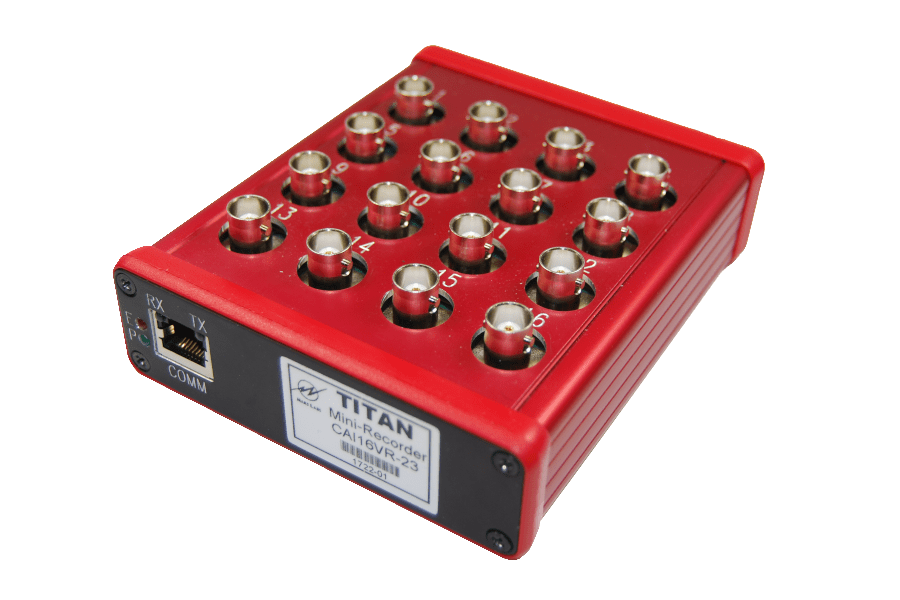

Titan ICP MINI-RECORDER
16 Channel Data Acquisition Recorder
Key Features:
- Stand-alone recording to SD memory card (up to 16 channels) with onboard controls for recording and calibration operations.
- High performance analog front-end with full Balance and Calibration loopback features
- 24 bit analog conversion
- ICP sensor support
- GPS recording supported
- Records directly to a PC via USB
- Compact size, light weight and low power consumption make the device suitable for in-vehicle applications
- Interfaces with other Titan products to provide up to 384 analog channels, plus digital channels
- Configured with top-mounted BNC connectors or convenient DB9 connectivity on rear panel (permits device stacking for high density applications)
Applications:
- Durability & Fatigue
- Vehicle Dynamics
- Acoustics
- Noise & Vibration Analysis
- Ride Quality Assessment
- Shock
Specifications:
| Number of Channels | 16 fault-tolerant channels |
| Sample Rate | High Speed Operation: up to 60,000 samples per second per channel Low Speed Operation: up to 1200 samples per second per channel |
| Resolution | Utilizes 24-bit A/D conversion; 16 bit exported |
| Input Impedance | 40K (all modes) |
| Programmable Gain | From ±1 to ±8 (±8V Full scale input voltage maximum) |
| Programmable Filter | 10 pole Linear Phase tracking filter (High Speed operation) 8 pole Butterworth filter (Low Speed operation) |
| Supported Scan Rates | High Speed: 2000, 4000, 10K, 11.025K, 16K, 20K, 22.05K, 25K, 30K, 40K, 44.1K, 48K, 50K, 60KHz Low Speed: 10, 20, 32, 40, 50, 64, 80, 100, 128, 200, 204.8, 300, 400, 409.6, 512, 600, 1024, 1200Hz |
| Calibration Modes | Voltage (VCal): Precision positive and negative calibration voltages provided |
| Analog Sensor Support | Tachometer/Totalizer: Frequencies up to 7KHz ICP Sensors: 2.5mA current @ 20V compliance |
| GPS | Optional on-board GPS support for the Garmin 18X-5Hz w/PPS |
| PC Operation | Remote recording and control via USB |
| Stand-alone Operation | Via on-board switches or Titan Remote Control (Mars Labs CBL-RMT) |
| Recording Media | Secure Digital (SD) memory card, 32GB (furnished) |
| Expansion Slot (1) | Supports optional Mini-Digital Pod (digital input) or Mini-DAC (analog output) expansion cards |
| Power Requirements | 11-32 VDC 3 Watts (base unit, sensors not driven) |
| Dimensions / Weight | 13.5 cm x 10.6 cm x 3.7 cm (L x W x H) |
| Breakout Cables | Included with CAI16VR-53 |
