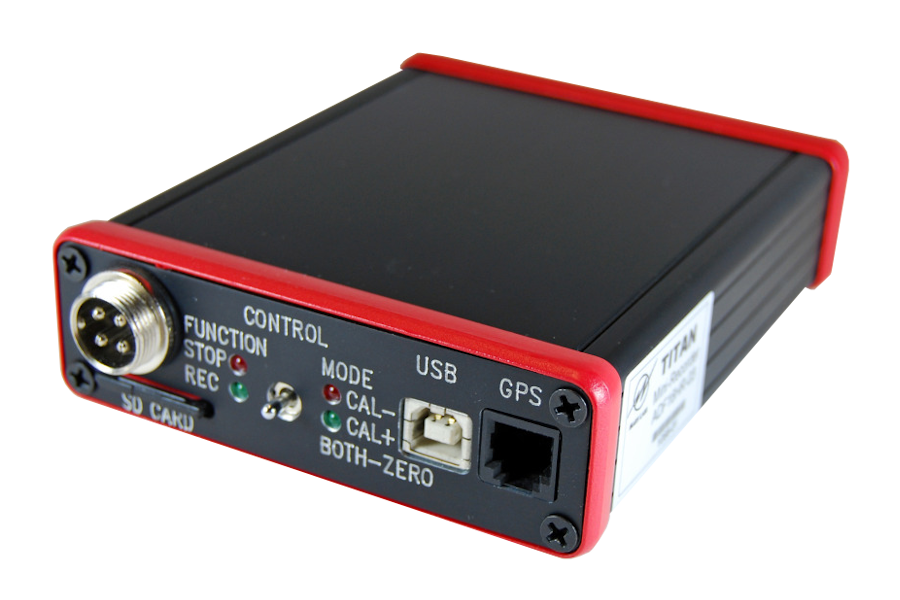

Titan MINI-RECORDER
16 Channel Data Acquisition Recorder
Key Features:
- Stand-alone recording to SD memory card for up to 16 channels
- Records directly to a PC via USB
- High performance analog front-end with full Balance and Calibration loopback features
- Onboard controls for in-the-field recording and calibration operations.
- Compact size, light weight and low power consumption make the device suitable for in-vehicle applications
- Interfaces with other Titan products to provide up to 384 analog channels, plus digital channels
- GPS and Digital Sensor recording supported
- Analog Sensor inputs via DB-37 connection
Applications:
- Durability & Fatigue
- Vehicle Dynamics
- Acoustics
- Noise & Vibration Analysis
- Ride Quality Assessment
- Shock
Specifications:
| Number of Channels | 16 fault-tolerant channels on a single DB37F connector |
| Sample Rate | High Speed Operation — up to 10,000 samples per second per channel Low Speed Operation — up to 1200 samples per second per channel |
| Programmable Gain | From ±1/16 to ±512; ±32V Full scale input voltage max. |
| Programmable Filter | 10 pole Linear Phase tracking filter (High Speed operation) 8 pole Butterworth filter (Low Speed operation) |
| Calibration Modes | Resistive (RCal): ±100K Ohms per channel (shunt calibration) Voltage (VCal): Precision positive and negative calibration voltages provided |
| Excitation | Fixed 2.048 Volts |
| Analog Sensor Support | Full Bridge resistive type – strain gauges, load cells, accelerometers, etc Voltage Input — up to ±32 Volts Tachometer / Totalizer (frequencies up to 7KHz) Thermocouples J, K, & T |
| Digital Sensor Support (via Titan Digital Pod) | SAE J1939, ISO 15765, 3DM-GX3 IMU, and multiple Wheel Force Transducer (WFT) protocols, including Kistler and Michigan Scientific |
| GPS | Optional on-board GPS support for the Garmin 18X-5Hz w/PPS |
| PC Operation | Remote recording and control via USB |
| Stand-alone Operation | Via on-board switches or Titan Remote Control (Mars Labs CBL-RMT) |
| Recording Media | Secure Digital (SD) memory card, 2GB (furnished), up to 16GB supported |
| Power Requirements | 11-32 VDC |
| Dimensions / Weight | 12 cm x 10.6 cm x 3 cm (L x W x H) |
