Titan CPU Expander

384 Channel Expander

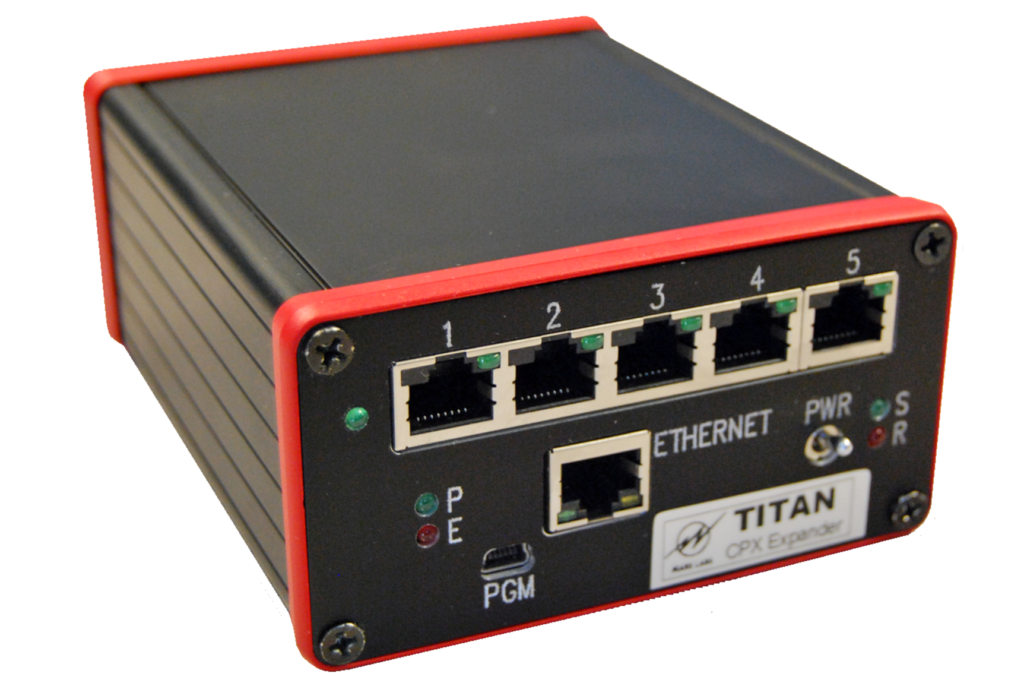

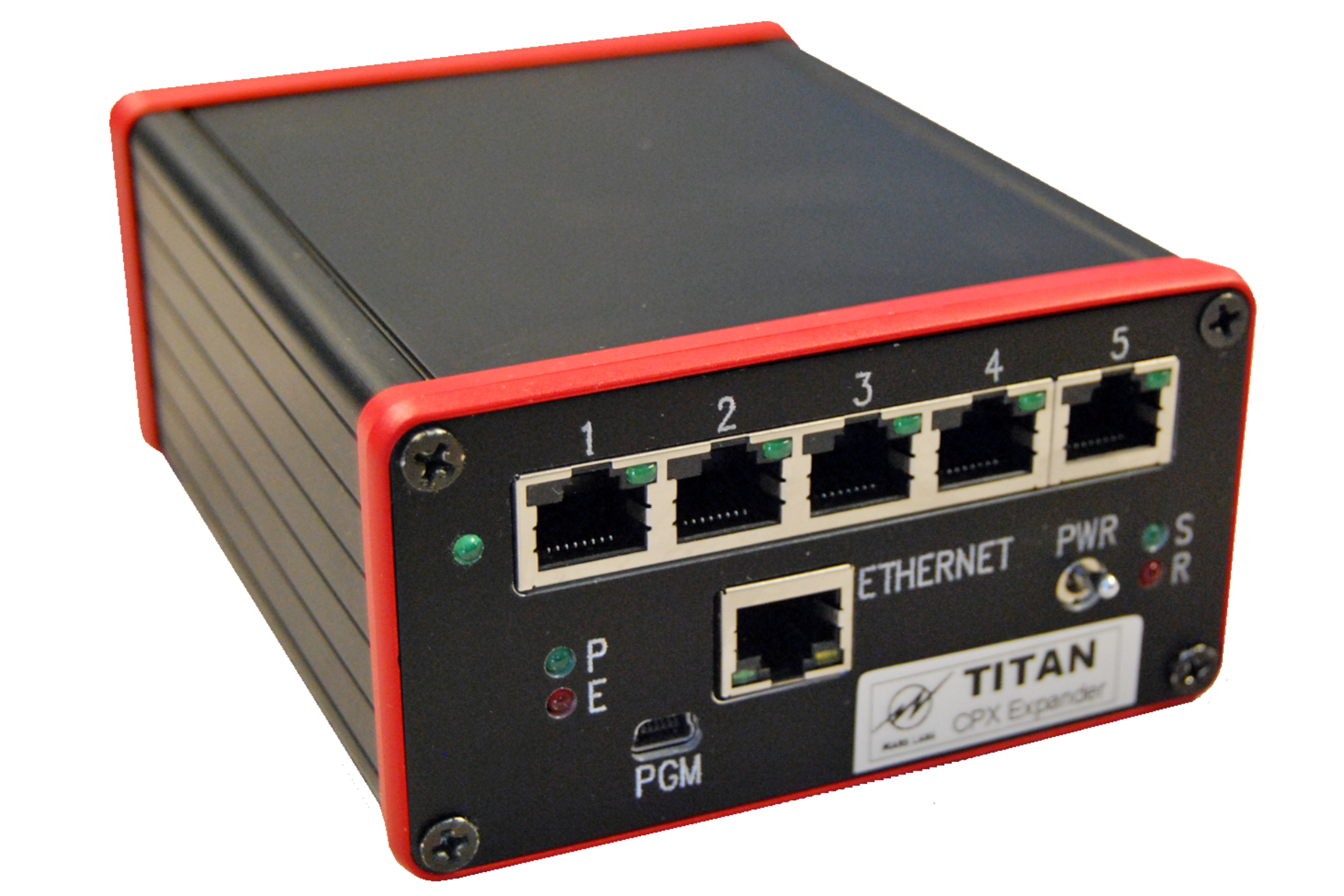

Front View


  • Supports up to 3 Titan CPUs with a mix of Titan and Titan II modules
  • Isolated power supply (11-32 VDC)
  • Records directly to SD card (internal) or to a host PC
  • Network interface allows remote operation via TCP/IP
  • Compact size and low weight make the CPU Expander suitable for in-vehicle applications
  • Auto start / auto record

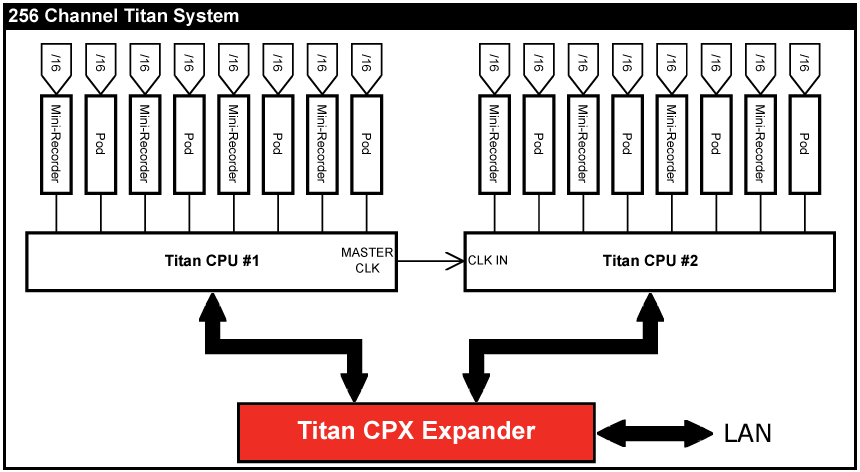

  • CPUs may be linked together for expanded system configurations up to 384 analog channels, plus digital channels

Number of CPU08 Supported Up to three Titan CPUs; 384 analog channels max, plus digital channels
Sample Rate Recording to device:
Up to 2000 samples/second (256 channels) for Titan CPU08
Up to 4000 samples/second (256 channels) for Titan CPU08V
Recording Media 32GB Secure Digital (SD) memory card (non-removable)
PC OperationVia network or Ethernet crossover cable
Power Requirements 11 – 32 VDC @ 4W for the CPU, 4W typical for each additional Titan Input Module
Dimensions 13.3 cm x 10.6 cm x 5.6 cm (L x W x H)
